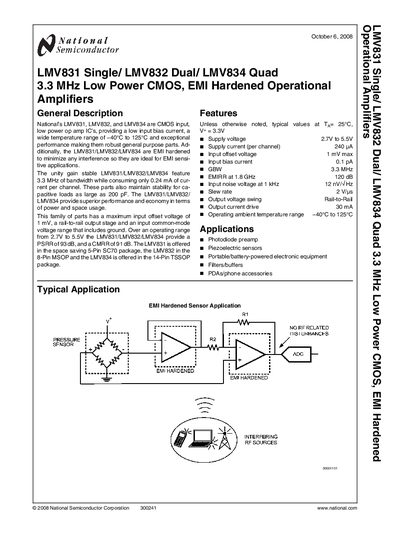

National’s LMV831, LMV832, and LMV834 are CMOS input, low power op amp IC's, providing a low input bias current, a wide temperature range of −40°C to 125°C and exceptional performance making them robust general purpose parts. Additionally, the LMV831/LMV832/LMV834 are EMI hardened to minimize any interference so they are ideal for EMI sensitive applications. The unity gain stable LMV831/LMV832/LMV834 feature 3.3 MHz of bandwidth while consuming only 0.24 mA of current per channel. These parts also maintain stability for capacitive loads as large as 200 pF. The LMV831/LMV832/LMV834 provide superior performance and economy in terms of power and space usage. This family of parts has a maximum input offset voltage of 1 mV, a rail-to-rail output stage and an input common-mode voltage range that includes ground. Over an operating range from 2.7V to 5.5V the LMV831/LMV832/LMV834 provide a PSRR of 93 dB, and a CMRR of 91 dB. The LMV831 is offered in the space saving 5-Pin SC70 package, the LMV832 in the 8-Pin MSOP and the LMV834 is offered in the 14-Pin TSSOP package.
The LMV831 (single), LMV832 (dual) and LMV834 (quad) are low‑power CMOS operational amplifiers with EMI‑hardening, rail‑to‑rail output, and a wide supply range of 2.7 V to 5.5 V. They are suited for battery‑powered and portable equipment, offering a 3.3 MHz gain‑bandwidth product and low input bias current.
The document lists absolute maximum ratings, detailed electrical characteristics, ordering part numbers for the 5‑Pin SC‑70, 8‑Pin MSOP and 14‑Pin TSSOP packages, connection diagrams, and notes on usage, testing, and compliance. It also provides typical performance curves for supply current, input bias current, and output swing.
| Input Offset Voltage | +0.25 to +1.00 mV |
|---|---|
| Input Bias Current | 0.1 pA (typical) |
| Gain Bandwidth Product | 3.3 MHz |
| Output Current Drive | 30 mA |
Typical input bias current is 0.1 pA.
The gain‑bandwidth product is 3.3 MHz.
