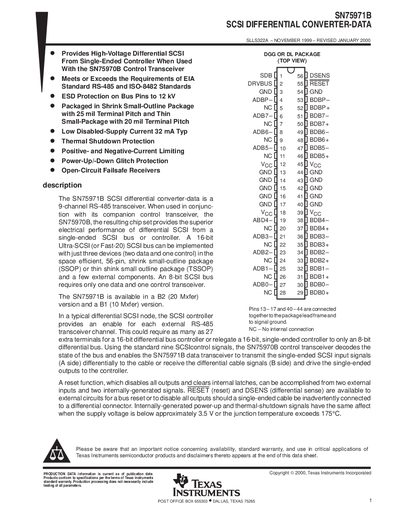

Texas Instruments SN75971B SCSI Differential Converter-Data Datasheet

About this manual

The SN75971B SCSI Differential Converter‑Data provides high‑voltage differential SCSI interfaces for use with a companion control transceiver (SN75970B). It meets EIA‑485 and ISO‑8482 standards and includes ESD protection, thermal shutdown, and current‑limiting features. The device is offered in shrink‑small‑outline (SSOP) and thin‑shrink (TSSOP) packages.

Typical applications include converting single‑ended SCSI bus signals to a differential bus for improved noise immunity and longer cable runs. The datasheet details electrical characteristics, absolute maximum ratings, recommended operating conditions, and timing specifications.

What's inside

• Description
• Functional Block Diagram
• Schematics of Inputs and Outputs
• Absolute Maximum Ratings
• Recommended Operating Conditions
• Electrical Characteristics
• Switching Characteristics
• Parameter Measurement Information
• Package Option Addendum
• Important Notice

Specifications

Frequently asked questions

What is the ESD protection rating for the bus pins?

The bus pins are protected up to 12 kV.

What is the typical disabled‑supply current of the device?

The disabled‑supply current is typically 32 mA.
