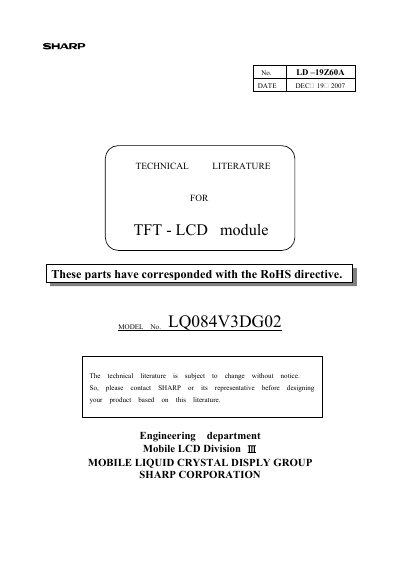

This is a technical literature introducing the technical features of TFT - LCD module MODEL No. LQ084V3DG02
The Sharp LQ084V3DG02 is an 8.4‑inch color active‑matrix transmissive TFT‑LCD module that uses amorphous‑silicon TFT technology. It provides a 640 × 480 pixel display with 262,144 colors, a backlight driven by a white‑LED edge‑lighting system, and supports image inversion and screen flipping.
The document details mechanical dimensions, electrical characteristics, input signal assignments, timing diagrams, handling instructions, and reliability test procedures, offering designers the data needed to integrate the module into electronic equipment while complying with RoHS and safety guidelines.
