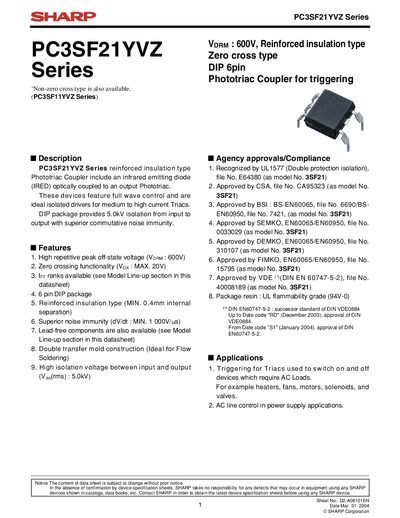

PC3SF21YVZ Series is a phototriac coupler with a VDRM of 600V, reinforced insulation type, zero crossing type DIP 6 pin phototriac coupler for triggering.
The Sharp PC3SF21YVZ series phototriac couplers provide reinforced‑insulation, high isolation (5 kV) and zero‑crossing functionality for driving medium to high current triacs. The devices integrate an infrared emitting diode optically coupled to an output phototriac, offering full‑wave control and superior noise immunity.
The datasheet includes absolute maximum ratings, electrical characteristics, mechanical dimensions, approved safety standards (UL1577, CSA, BSI, etc.), and design considerations such as recommended snubber circuits and degradation expectations for the infrared emitter.
| Forward current (I_F) | 50 mA |
|---|---|
| Reverse voltage (V_R) | 6 V |
| RMS ON‑state current (I_ON) | 0.1 A |
| Operating temperature range | -30 °C to +100 °C |
| Storage temperature range | -55 °C to +125 °C |
| Soldering temperature | 270 °C |
The triggering current must be 0.1 mA or less for the phototriac to turn off.
