LQ15X01W is a 15 inch color TFT-LCD module with high brightness, wide viewing angle, long life backlight and other features
The LQ15X01W is a high‑brightness color TFT LCD module designed for desktop PC and monitor applications. It features a 38 cm (15.0 in) display, XGA resolution, and a long‑life backlight.

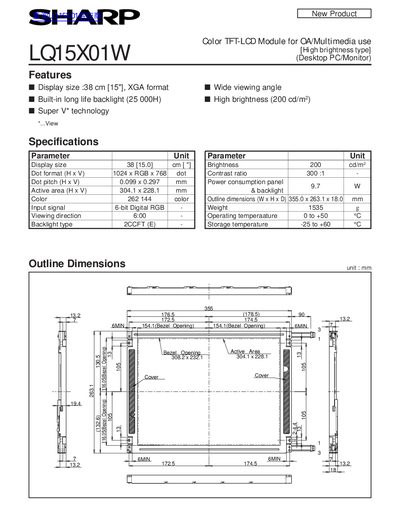

The leaflet lists key specifications such as brightness, contrast, power consumption, and physical dimensions, and includes a notice that the product is not intended for military vehicle or aircraft cockpit use.
| Display size | 38 cm (15.0 in) |
|---|---|
| Resolution | 1024 x 768 |
| Brightness | 200 cd/m² |
| Contrast ratio | 300:1 |
| Power consumption | 97 W |
| Color depth | 262,144 colors |
| Outline dimensions (W x H x D) | 855.0 x 263.1 x 18.0 mm |
| Weight | 1535 g |
| Operating temperature | 0 to +50 °C |
| Storage temperature | -25 to +60 °C |
The display size is 38 cm (15.0 in).
The module provides a brightness of 200 cd/m².
No, the intended purpose does not include military vehicles or civilian aircraft cockpit applications.
