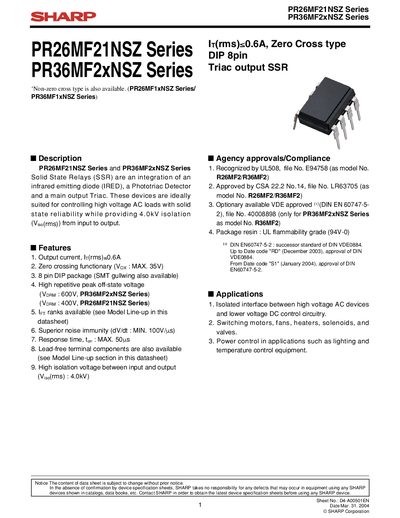

This datasheet introduces the features and characteristics of PR26MF21NSZ series and PR36MF2xNSZ series solid state relays (SSR).
The PR26MF21NSZ and PR36MF2xNSZ series are solid‑state relays approved for UL508, CSA 22.2 and VDE standards. They provide isolated interfaces for high‑voltage AC loads with up to 4.0 kV isolation and feature zero‑crossing functionality.
The document includes absolute maximum ratings, electro‑optical characteristics, package options (8‑pin DIP and SMT gullwing), dimensional drawings, date‑code tables, and packaging details such as tape‑and‑reel specifications. Important notices cover usage limits, application examples, and export restrictions.
| Output current (Ir rms) | <0.6 A |
|---|---|
| Forward voltage (Vf) | 1.2 – 14 V |
| Operating temperature range | -30 to +85 °C |
| Storage temperature range | -40 to +125 °C |
| Package type | 8‑pin DIP, SMT gullwing available |
| Surge current (single‑cycle) | 6 A |
The maximum RMS output current is less than 0.6 A.
Both an 8‑pin DIP package and an SMT gullwing lead‑form are offered.
