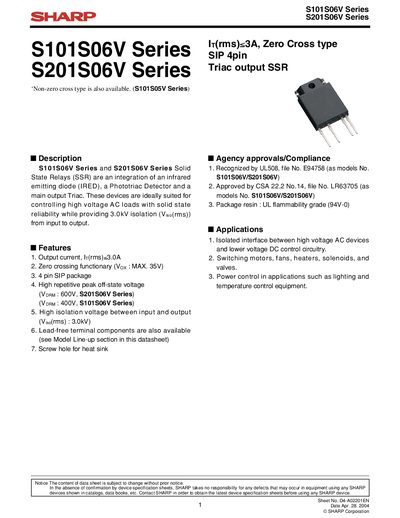

S101S06V Series and S201S06V Series Solid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 3.0kV isolation (Viso(rms)) from input to output.
The Sharp 101S06V and 201S06V series are solid‑state relays (SSR) that integrate an infrared emitting diode, a phototriac detector and a main output triac. They are intended for switching high‑voltage AC loads with reliable isolation and are offered in a 4‑pin SIP package.
The datasheet provides electrical characteristics such as a maximum output current of less than 3 A rms, isolation voltage of 3 kV rms, and peak off‑state voltages of 400 V (101S06V) and 600 V (201S06V). It also includes mechanical dimensions, temperature ratings, compliance approvals (UL508, CSA 22.2), and design recommendations like snubber circuits and heat‑sink mounting.
| Maximum output current (It rms) | < 3 A |
|---|---|
| Forward current (If) | 3 mA |
| Reverse voltage (Vr) | 6 V |
| Operating temperature range | -25 °C to +100 °C |
| Storage temperature range | -30 °C to +125 °C |
| Package type | 4‑pin SIP |
Yes, they are recognized by UL508, file No. E94758.
The maximum output current is less than 3 A rms.
It is supplied in a 4‑pin SIP (single in‑line) package.
