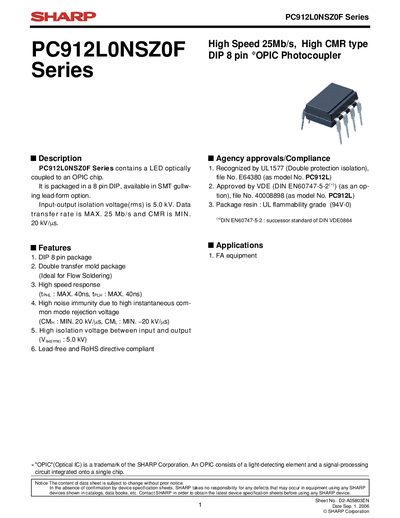

PC912L0NSZ0F Series is a photocoupler from SHARP. It is packaged in a 8 pin DIP and has features of high speed response, high instantaneous common mode rejection voltage, high isolation voltage, etc. It is RoHS compliant.
The PC912LONSZOF Series is a high‑speed, high‑isolation optically coupled device that integrates a light‑detecting element and signal‑processing circuit on a single chip. It is offered in several package styles, including 8‑pin DIP, through‑hole, and SMT gull‑wing options, and complies with UL1577 and VDE DIN EN60747‑5‑2 standards.
Key features include a 5 kV isolation voltage, 25 Mb/s data transfer rate, propagation delays of about 40 ns, and low‑level supply currents under 10 mA. The datasheet also contains internal connection diagrams, package dimensions, and test circuits for performance verification.
| Data transfer rate | 25 Mb/s |
|---|---|
| Package type | 8‑pin DIP |
The device supports up to 25 Mb/s data transfer.
