This document introduces the features and characteristics of the LZ2313H5/LZ2314HJ 1/3-type CCD Area Sensors with 270 k Pixels products, including the effective pixels, pixel pitch, color filter, fixed pattern noise and lag, burn-in and image distortion, blooming suppression structure, built-in output amplifier, variable electronic shutter, compatibility with NTSC and EIA standards, etc.

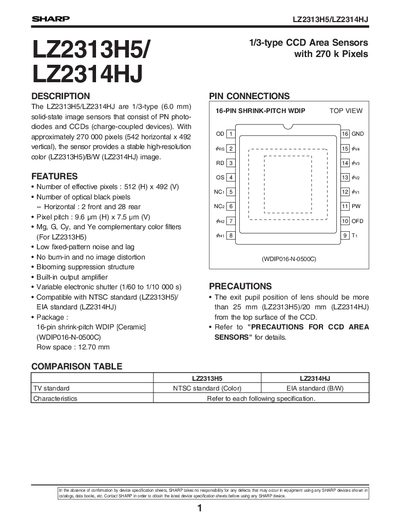

The Sharp LZ2313H5 (color) and LZ2314HJ (B/W) are 1/3‑type (6.0 mm) solid‑state image sensors with approximately 270 000 pixels (542 × 492). They feature low fixed‑pattern noise, blooming suppression, a built‑in output amplifier and a variable electronic shutter.
The datasheet provides detailed pin descriptions, absolute maximum ratings, recommended operating conditions, performance characteristics such as PRNU, DSNU, sensitivity and package information, as well as handling precautions for the ceramic or plastic packages.
| Effective pixels | 542 × 492 |
|---|---|
| Number of effective pixels | 512 × 492 |
| Pixel pitch | 9.6 µm (H) × 7.5 µm (V) |
| Package type | 16‑pin shrink‑pitch WDIP (WDIP016‑N‑0500C) |
| Ambient operating temperature | 25 °C (typical) |
| Output transistor drain voltage (typical) | 15.0 V |
| Standard output voltage (Vo) | 150 mV |
| Photo response non‑uniformity (PRNU) | 15 % (LZ2313H5) |
| Dark signal non‑uniformity (DSNU) | 0.6 – 2.0 mV |
| Sensitivity (R) | 440 – 600 mV |
| Blooming suppression ratio (ABL) | 100 |
| Output transistor drain current (Iop) | 4.0 – 8.0 mA |
The recommended ambient operating temperature is 25 °C.
The output transistor drain voltage can be up to 16.0 V.
The sensor has 512 × 492 effective pixels (approximately 270 k pixels).
It is supplied in a 16‑pin shrink‑pitch WDIP ceramic package (WDIP016‑N‑0500C).
