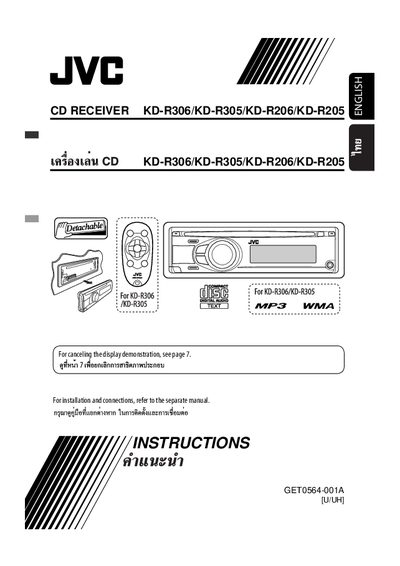

This document is an instruction manual for JVC CD receivers, including the KD-R306/KD-R305/KD-R206/KD-R205 models. The document provides instructions for canceling the display demonstration and for installation and connections. Important information includes precautions for laser products, volume setting, and temperature inside the car.
This manual covers the JVC KD‑R306, KD‑R305, KD‑R206 and KD‑R205 in‑car CD receivers. It explains basic operations such as power control, source selection, CD and MP3/WMA playback, FM/AM tuning, and preset management. The remote controller (RM‑RK50) functions and battery replacement are also described.
Installation instructions detail the vehicle wiring, fuse rating, antenna connection, and how to connect an external amplifier. The troubleshooting section lists common issues like blown fuses, no sound, and overheating, with steps to diagnose and resolve them.
| Battery type for remote | CR2025 lithium coin battery |
|---|---|
| Fuse rating | 15 A |
| Maximum antenna current | 250 mA |
| Maximum remote lead current | 200 mA |
| FM preset capacity | Up to 18 stations |
Press and hold the power button to reset; all preset adjustments will be erased.
