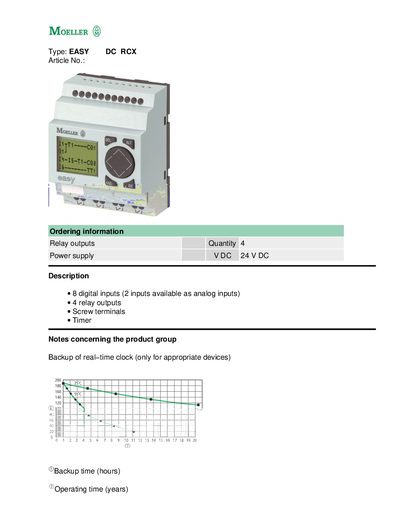

EASY512-DC-RCX is a 24 V DC powered module for simple switching operations in industrial and building environments. It has 8 digital inputs, 4 relay outputs, a timer and a backup battery. It can be mounted on a DIN rail or fixed to a wall using the fixing brackets (ZB4-101-GF1).
This handbook describes the technical data of the Moeller EASY512 DC RCX relay module, including its electrical characteristics, input/output options, and environmental ratings. It lists the number of digital and analog inputs, relay outputs, power supply requirements, and protection features.
The document also covers mechanical dimensions, mounting options, standards compliance, and EMC performance. Additional sections detail the rated impulse withstand voltage, make/break capacity, and control circuit rating codes for various load conditions.
| Relay outputs | Quantity 4 |
|---|---|
| Power supply voltage | 24 V DC |
| Digital inputs | 8 (2 can be used as analog inputs) |
| Input current rating | 115/230 V AC |
| Maximum make/break capacity | 1 atB 300 |
The module operates from a 24 V DC power supply.
It provides four relay outputs.
