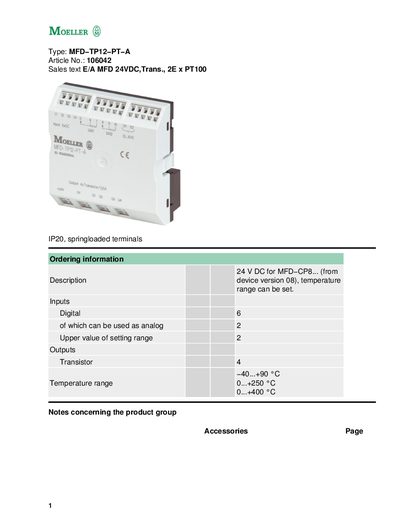

This document describes a 24VDC MFD temperature sensor with 2 PT100 inputs and 4 transistor outputs. It is suitable for MFD-CP8 devices and can have a set temperature range.
The MFD‑TP12‑PT‑A is a temperature‑measurement module supplied at 24 V DC. It features spring‑loaded terminals, IP20 protection and can be used with PT100 sensors. The device supports a temperature range from –40 °C to 490 °C and complies with IEC/EN standards for environmental and electromagnetic compatibility.
The leaflet lists mechanical and electrical specifications, accessories, and standard certifications such as EN 55011 Class B and EN 50178. Physical data include a weight of 0.14 kg and compact dimensions, while electrical data cover input impedance, accuracy, and cable length limits.
| Supply voltage | 24 V DC |
|---|---|
| Temperature measurement range | -40 °C … 490 °C |
| Dimensions (approx.) | 0.24 mm (AWG 24‑12) |
| Accuracy (typical) | ±3 % |
| Input impedance | 11.2 kΩ |
| Maximum screened cable length | < 30 m |
It can measure temperatures from –40 °C up to 490 °C.
The module operates from a 24 V DC supply.
