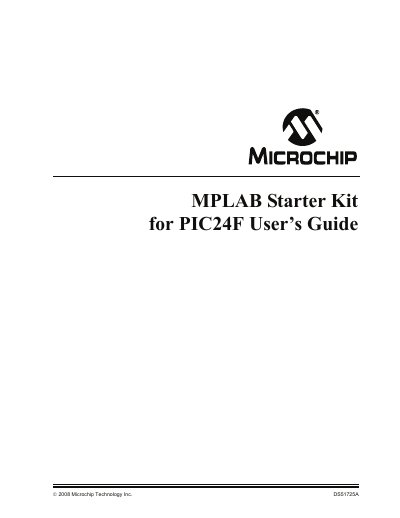

This document is the Microchip MPLAB Starter Kit for PIC24F User’s Guide, which mainly introduces the functions, features, and usage methods of the product
The User's Guide introduces the MPLAB Starter Kit for PIC24F, describing its purpose as a development and demonstrative tool for PIC24F microcontroller capabilities. It covers the kit’s hardware components, USB and power options, and provides an overview of the pre‑programmed demonstration application.
Subsequent chapters detail hardware configuration, step‑by‑step procedures for debugging and programming using MPLAB IDE, troubleshooting tips, and a full schematic appendix. The guide also lists warranty registration, support resources, and worldwide sales contacts.
| Microcontroller | PIC24F256GB110 |
|---|---|
| USB connector | mini‑B |
| Display type | OLED |
| LED type | Tri‑Color |
| Touch pad type | Capacitive |
It is a development and demonstrative tool for PIC24F MCU device capabilities and features.
Visit Microchip’s website at www.microchip.com to download the most recent files and information.
Subscribe to Microchip’s Customer Change Notification Service to get email updates on product revisions, errata, and releases.
