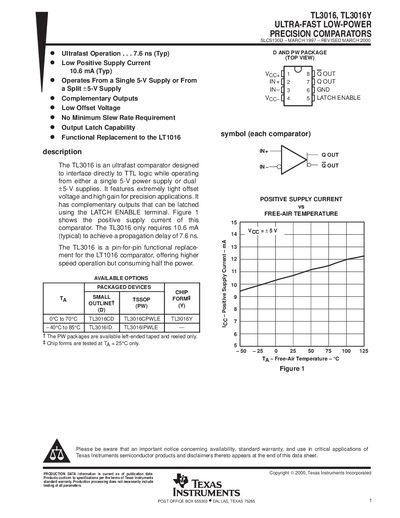

TL3016 is an ultrafast comparator designed to interface directly to TTL logic while operating from either a single 5-V power supply or dual ±5-V supplies. It features extremely tight offset voltage and high gain for precision applications. It has complementary outputs that can be latched using the LATCH ENABLE terminal. The TL3016 only requires 10.6 mA (typical) to achieve a propagation delay of 7.6 ns. The TL3016 is a pin-for-pin functional replacement for the LT1016 comparator, offering higher speed operation but consuming half the power.
The TL3016 and TL3016Y are ultrafast, low‑power precision comparators that can operate from a single 5‑V supply or a split ±5‑V supply. They feature complementary latched outputs, very low offset voltage, and a typical propagation delay of 7.6 ns. The devices are pin‑for‑pin functional replacements for the LT1016 comparator.
The handbook includes absolute‑maximum ratings, typical electrical characteristics, switching performance, mechanical dimensions, and packaging options. It also contains a notice on product availability, warranty, and safety considerations for critical applications.
| Typical propagation delay | 7.6 ns |
|---|---|
| Typical positive supply current | 10.6 mA |
The TL3016 has a typical propagation delay of 7.6 ns.
The typical positive supply current is 10.6 mA.
Yes, the TL3016 is a pin‑for‑pin functional replacement for the LT1016 comparator.
