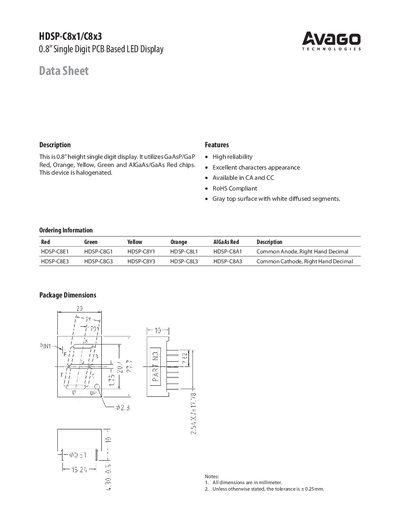

This is a 0.8” height single digit display. It utilizes GaAsP/GaP Red, Orange, Yellow, Green and AlGaAs/GaAs Red chips. This device is halogenated. The features of this product are: high reliability, excellent characters appearance, available in CA and CC, RoHS Compliant, gray top surface with white diffused segments.
The HDSP-C8x1/C8x3 series provides a compact 0.8" single‑digit LED display using red, orange, yellow, green and AlGaAs/GaAs red chips. It is available in common‑anode and common‑cathode configurations and complies with RoHS.
The datasheet lists package dimensions, absolute maximum ratings, forward current, voltage characteristics, luminous intensity and wavelength data for each color, as well as relative intensity curves and packing information.
| Display height | 0.8" |
|---|---|
| Available colors | Red, Orange, Yellow, Green, AlGaAs/GaAs Red |
| Package dimensions units | millimeter |
| Continuous forward current per segment | 25 mA |
| Reverse voltage per segment | 5 V |
| Operating temperature range | -40 °C to 85 °C |
| Storage temperature range | -40 °C to 85 °C |
| Average luminous intensity (Red) | 4.8 mcd |
| Peak wavelength (Red) | 640 nm |
| Forward voltage per segment (Red) | 2.0 V |
The display operates from –40 °C to 85 °C.
A red segment has a forward voltage of about 2.0 V at 20 mA.
The display is available in red, orange, yellow, green and AlGaAs/GaAs red.
