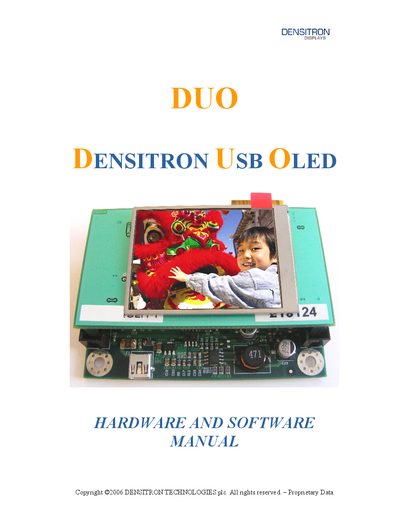

This document is an introduction to the DUO DENSITRON USB OLED hardware and software manual from DENSITRON TECHNOLOGIES. It describes the hardware features and software functions of the product.
The DUO controller is a compact USB‑powered board (88 mm × 55 mm) that drives OLED displays via an 8‑bit parallel interface. It includes 500 KB of display memory, a switching power supply, and supports both USB 1.1 and USB 2.0. The board works with VCP and D2XX drivers on Windows, Mac OS, and Linux systems.
The manual explains how to assemble the controller with transition cards, connect it to a PC using the mini‑USB cable, install the required drivers, and operate the USB06 demo software for picture management, slide shows, brightness, and power‑saving settings.
| USB interface | USB1.1 and USB2.0 compatible |
|---|---|
| Board size | 88 mm × 55 mm |
| Display interface | 8‑bit parallel interface |
| Display memory | 500 KB |
| Power supply | Onboard switching power supply for OLED |
| Maximum data rate (VCP driver) | 300 KB/s |
| Hot‑plug detection | Supported |
