This is a pre-release specification sheet for an OLED module from CMEL. It lists detailed information on the product's driving mode, color mode, driver IC, interface, and application scenarios.

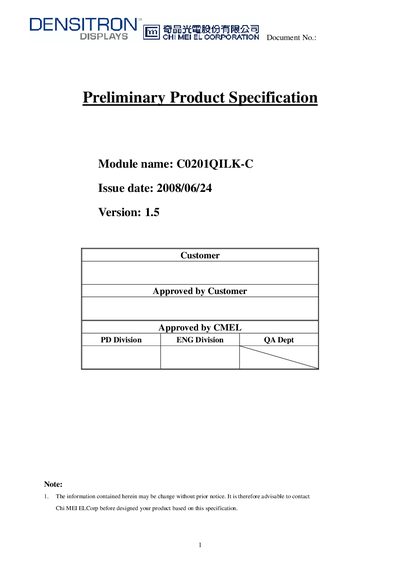

This document provides the preliminary product specification for the Densitron C0201QILK-C OLED display module supplied by CMEL. It outlines the module's purpose, general description, mechanical dimensions, electrical characteristics, and reliability testing procedures.
Key features include an active‑matrix driving mode, full‑color (262K) output, multiple MPU interfaces (i80, 168, and serial), and detailed absolute maximum ratings for power supply and temperature ranges. The specification also lists mechanical data such as a 2.0" diagonal size, 176 × 220 resolution, and a 0.18 mm pixel pitch.
| Diagonal Size | 2.0" |
|---|---|
| Resolution | 176 × 220 |
| Pixel Pitch | 0.18 mm × 0.18 mm |
| Operating Temperature | -20 °C ~ +60 °C |
| Power Supply Voltage (VDD3) | 0.3 V ~ +5.0 V |
| Driving Mode | Active Matrix |
The module uses an Active Matrix driving mode.
It supports MPU i80‑system (18/16/9/8‑bit), MPU 168‑system (18/16/9/8‑bit), and a serial data transfer interface.
VDD3 can be from 0.3 V to +5.0 V and VCI from 0.3 V to +5.0 V.
