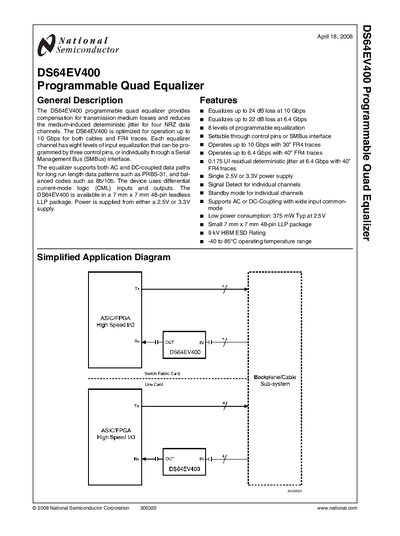

The DS64EV400 is a programmable quad equalizer that provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for four NRZ data channels.
The DS64EV400 programmable quad equalizer provides compensation for transmission‑medium losses and reduces deterministic jitter for four NRZ data channels. It operates up to 10 Gbps on cables or FR4 traces and offers eight levels of programmable equalization per channel, selectable via control pins or an SMBus interface.
The document includes a general description, pin descriptions, SMBus control details, ordering information, absolute maximum ratings, electrical characteristics, signal‑detect timing, physical dimensions, and notes on usage and warranty.
| Maximum equalization loss at 10 Gbps | 24 dB |
|---|---|
| Maximum equalization loss at 6.4 Gbps | 22 dB |
| Number of equalization levels per channel | 8 |
| Typical power consumption at 2.5 V | 375 mW |
| Operating temperature range | -40 °C to 85 °C |
| Package type | 48‑pin leadless LLP (7 mm × 7 mm) |
| Supply voltage options | 2.5 V or 3.3 V |
Each channel provides eight levels of programmable equalization.
Typical power consumption is 375 mW at 2.5 V.
It is supplied in a 48‑pin leadless LLP package measuring 7 mm × 7 mm.
