The LM7341 is a RRIO input and output amplifier in a small SOT-23 package with a wide supply voltage and temperature range. The amplifier has a 4.6 MHz gain bandwidth and a 1.9 volt per microsecond slew rate, and draws 0.75 mA of supply current at no load. The LM7341 is tested at -40°C, 125°C and 25°C with modern automatic test equipment. Detailed performance specifications at 2.7V, ±5V, and ±15V and over a wide temperature range make the LM7341 a good choice for automotive, industrial, and other demanding applications. The LM7341's input common mode range is greater than RRIO, with a minimum 76 dB of common mode rejection at ±15V, making it a good choice for both high side and low side sensing applications. The LM7341's performance is consistent over a wide voltage range, making the part useful for applications where the supply voltage can change, such as automotive electrical systems and battery powered electronics. The LM7341 uses a small SOT23-5 package, which takes up little board space, and can be placed near signal sources to reduce noise pickup.
The LM7341 is a rail‑to‑rail input and output amplifier offered in a compact 5‑pin SOT‑23 package. It operates from a supply voltage range of 2.5 V to 32 V, draws only 0.7 mA, and provides a gain‑bandwidth product of 4.6 MHz with a slew rate of 2 V/µs. Its high common‑mode rejection (115 dB) and power‑supply rejection (106 dB) make it suitable for automotive, industrial and other demanding applications.

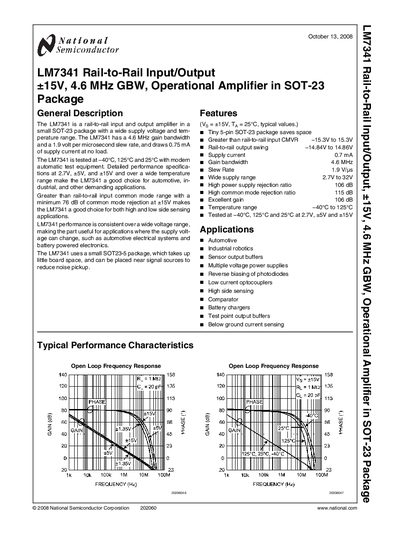

The datasheet includes detailed electrical characteristics, absolute maximum ratings, typical performance curves, and ordering information for the LM7341. It also provides connection diagrams and notes on testing and reliability.
| Supply Voltage Range | 2.5 V to 32 V |
|---|---|
| Supply Current | 0.7 mA |
| Gain Bandwidth (GBW) | 4.6 MHz |
| Slew Rate | 2 V/µs |
| Common‑Mode Rejection Ratio (CMRR) | 115 dB |
| Output Voltage Swing | -14.84 V to 14.86 V |
The LM7341 draws 0.7 mA of supply current.
The device has a gain‑bandwidth product of 4.6 MHz.
It is supplied in a 5‑pin SOT‑23 package.
The output can swing from –14.84 V to +14.86 V.
