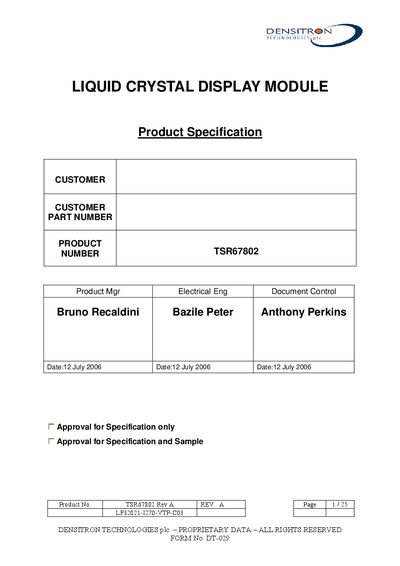

Liquid Crystal Display Module Product Specification
The TSR67802 is a 320 × RGB × 234‑dot TFT LCD module with an EDGE CCFL backlight. It offers an overall size of 148 mm × 120 mm × 22.2 mm and a viewing area of 145.48 mm × 86.91 mm. The module operates from 0 °C to +60 °C and includes a built‑in touch panel and DC/DC converter.
The document provides mechanical drawings, electrical ratings, optical performance data, and handling precautions. It outlines power supply limits (0‑5.5 V), typical logic voltage (5 V), and a maximum current consumption of 550 mA. Safety guidelines cover cleaning, static protection, and storage requirements.
| Display Format | 320 x RGB x 234 Dots |
|---|---|
| Overall Dimensions | 148.0 mm (W) × 120.0 mm (H) × 22.2 mm (Max) |
| Viewing Area | 145.48 mm (W) × 86.91 mm (H) |
| LCD Type | TFT |
| Backlight Type | EDGE CCFL |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | -25 °C ~ +80 °C |
| Power Supply Voltage | 0 V – 5.5 V |
| Interface | 8‑bit parallel for 80 or 68 series microprocessors |
The module operates from 0 °C up to +60 °C.
Lightly wipe the surface with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluoromethane, and avoid dry or hard materials and aromatic solvents.
Avoid contact with the liquid crystal fluid; if it touches skin or clothing, wash immediately with soap and plenty of water.
The maximum power supply voltage is 5.5 V.
