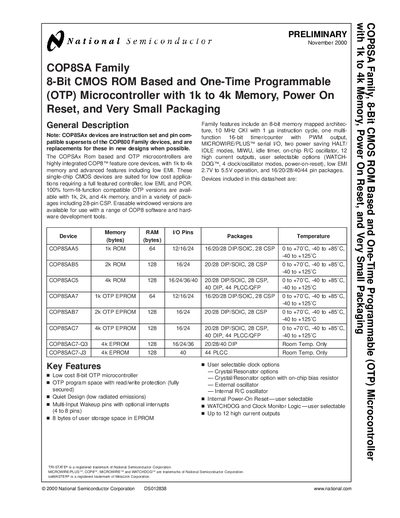

The COP8SA family is an 8-bit CMOS ROM and OTP microcontroller with 1k to 4k memory, low EMI, power-on reset, and small packaging. It is suitable for low-cost applications requiring a full-featured controller, low EMI, and power-on reset.
The COP8SA family comprises 8‑bit CMOS microcontrollers with ROM or one‑time‑programmable (OTP) memory ranging from 1 kB to 4 kB. They feature a modified Harvard architecture, low‑EMI design, power‑on‑reset, and a variety of package options including 28‑pin CSP.
Key features include a 10 MHz clock with a 1 µs instruction cycle, a 16‑bit timer/counter with PWM, multi‑input wake‑up logic, up to 12 high‑current I/O pins, selectable clock sources, and operation from 2.7 V to 5.5 V. Electrical specifications cover supply current, input thresholds, and output drive capabilities.
| Memory size | 1 kB to 4 kB |
|---|---|
| Operating voltage | 2.7 V to 5.5 V |
| Instruction cycle time | 1 µs |
| High‑current outputs | Up to 12 pins |
The COP8SA family is offered with 1 kB, 2 kB, and 4 kB of ROM or OTP memory.
Each instruction executes in 1 µs, giving a 10 MHz instruction cycle.
The device provides up to 12 high‑current output pins.
The microcontroller operates from 2.7 V up to 5.5 V.
