This product is a single-channel operational amplifier, using Texas Instruments Advanced LinCMOS technology, with low noise, low input bias current, low power consumption, large output voltage swing and other characteristics

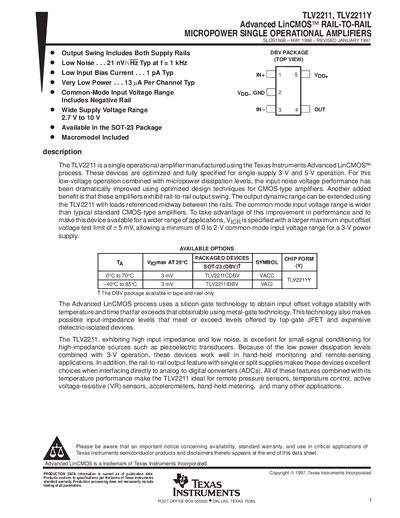

The TLV2211 and TLV2211Y are single operational amplifiers fabricated with Texas Instruments' Advanced LinCMOS™ process. They are optimized for 3‑V and 5‑V single‑supply operation, offering rail‑to‑rail output swing, very low input noise (21 nV/√Hz at 1 kHz) and ultra‑low input bias current (1 pA typical). These characteristics make them suitable for high‑impedance signal conditioning, portable instrumentation, and interfacing to ADCs.
The datasheet provides absolute maximum ratings, recommended operating conditions, electrical characteristics, and mechanical dimensions for the SOT‑23 (DBV) package. It also includes ESD protection details, power‑dissipation tables, and an important notice regarding critical applications and warranty.
| Input bias current (typical) | 1 pA |
|---|---|
| Input offset voltage (typical) | 0.45 mV |
The typical input bias current is 1 pA.
It is available in a SOT‑23 (DBV) plastic small‑outline package, supplied in tape and reel.
