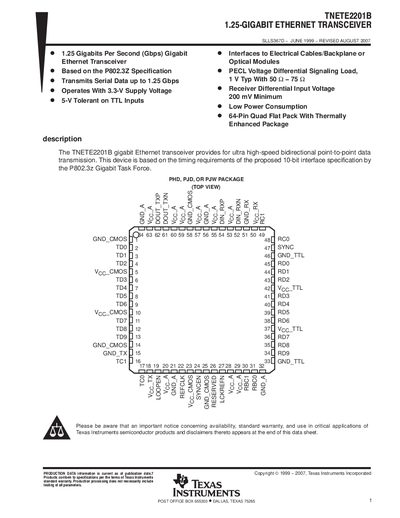

This datasheet provides information about the TNETE2201B gigabit Ethernet transceiver, including its features, functions, specifications, pin definitions, etc.
The TNETE2201B gigabit Ethernet transceiver provides ultra‑high‑speed bidirectional point‑to‑point data transmission. It implements SERDES functions for the Gigabit Ethernet physical layer, supporting 1.25 Gbps data rates over copper or optical media and offering internal loopback for self‑test.
The datasheet lists pin assignments, power requirements, timing characteristics, and PLL lock behavior, along with thermal‑pad mechanical data and TI's standard warranty and usage notices.
| Data rate | 1.25 Gbps (typical) |
|---|---|
| Supply voltage | 3.3 V |
| Operating temperature range | 0 °C to 70 °C |
| Package type | 64‑Pin Quad Flat Pack |
| Transmission latency | 9 ns (typical) |
| Receive latency | 18 ns (typical) |
| Reference clock | 125 MHz |
It operates at 1.25 Gbps typical, providing up to 1000 Mbps of bandwidth.
The device uses a 3.3‑V supply voltage.
It is characterized for operation from 0 °C to 70 °C.
