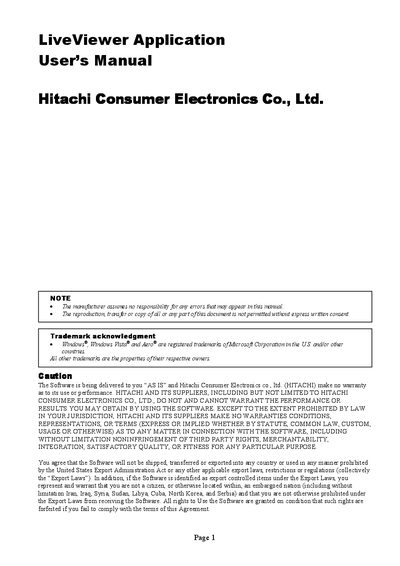

This is a LiveViewer application user manual that introduces the functions and usage methods of LiveViewer application.
This manual explains how to install the LiveViewer application, connect a computer to a Hitachi projector via wired or wireless LAN, and use its various display modes such as Single PC, Multi PC, Multi Projector, and Moderator Control. It also details system requirements, supported operating systems, and recommended computer settings for optimal performance.
The troubleshooting section covers common issues like sound interruption, network communication problems, and USB device conflicts, offering step‑by‑step checks and solutions. Updates and additional resources can be obtained from Hitachi’s website.
| Supported Operating Systems | Windows XP, Windows Vista (SP1+), Windows 7 |
|---|---|
| Minimum Display Resolution | 640×480 (XGA 1024×768 recommended) |
| Color Depth | 65,536 colors or higher |
| Hard Disk Space | 100 MB or higher |
| Web Browser | Internet Explorer 6.0 or higher |
| Wireless Standard | IEEE 802.11b/g/n |
LiveViewer requires Windows XP, Vista (Service Pack 1 or later) or Windows 7, a VGA resolution of at least 640×480 (1024×768 recommended), 100 MB free disk space, a graphics card supporting 65,536 colors, Internet Explorer 6.0+, and a wireless adapter compatible with IEEE 802.11b/g/n.
Insert the CD, run the setup program, select the installation language in the "Choose Setup Language" dialog, accept the license agreement, choose the destination folder, and follow the InstallShield wizard steps.
Restart LiveViewer and check your network connection; also ensure no USB devices (storage, wireless adapters, etc.) are interfering with the projector’s audio path.
LiveViewer supports Projector Models Group B and C (require XGA resolution or less) and Groups D and E (also require XGA or less, with reduced transfer rate if higher resolution is used).
