Complying with IEEE 802.11g and IEEE802.11b, the TL-WN651G adopts TP-LINK Super G™ and eXtended Range™ WLAN transmission technology, resulting in transmission distances of 4-9 times the signal coverage of traditional 11b/g products. The TL-WN651G supports WEP and WPA encryption for connecting to a secure wireless network. The TL-WN651G can fit different operation environments and let the user connect to the Wireless network easily. The TL-WN651G also supports Seamless Roaming and is compatible with other 11b, 11g WLAN equipments.

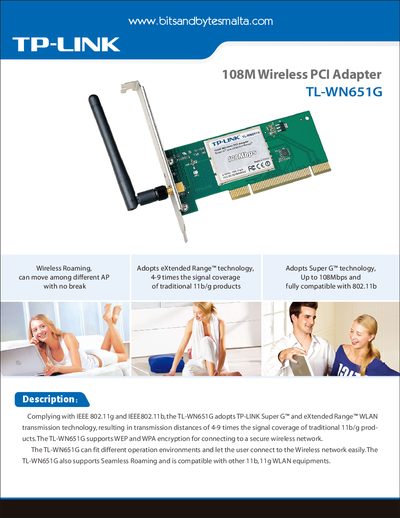

This manual covers the TP‑Link TL‑WN651G 108 Mbps wireless PCI adapter. It explains the device’s features such as Super G™ and eXtended Range™ technologies, seamless roaming, and support for 802.11b/g standards. The guide also details encryption options (WEP, WPA/WPA2) and basic installation steps.
Technical specifications are listed, including supported data rates, frequency range, transmit power, antenna type, operating temperature, and dimensions. Compatibility with Windows 2000/XP/Vista and certification information (FCC, CE) are also provided.
| Supported Wireless Standards | IEEE 802.11g, IEEE 802.11b |
|---|---|
| Wireless Signal Rates (802.11g) | 108/54/48/36/24/18/12/9/6 Mbps |
| Wireless Signal Rates (802.11b) | 11/5.5/2/1 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Maximum Transmit Power | 20 dBm (MAX) |
| Antenna Type | Detachable omni‑directional (2 dBi) |
| Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Range | Indoors up to 200 m, outdoors up to 830 m |
| Supported Operating Systems | Windows 2000, XP, Vista |
| Dimensions | 133 × 121 × 22 mm (5.2 × 4.8 × 0.9 in.) |
It complies with IEEE 802.11g and IEEE 802.11b standards.
The adapter works with Windows 2000, Windows XP, and Windows Vista.
The device’s maximum transmit power is 20 dBm.
It can reach up to 200 m indoors and up to 830 m outdoors.
