The content of this document is downloaded by Amateur Radio Directory, but there is no specific information about the features and characteristics of the products.

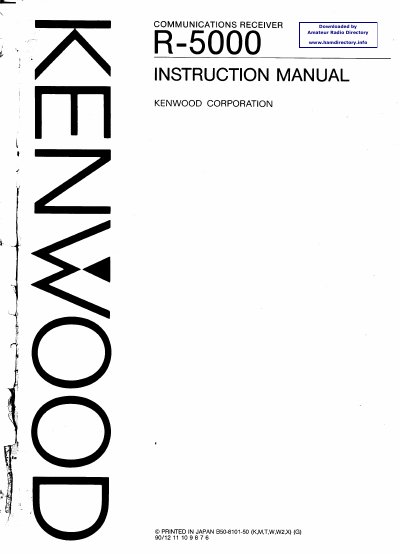

This manual covers safety precautions, power‑voltage selection, grounding, and handling instructions for the Kenwood R-5000 communications receiver. It explains the AC voltage selector settings for different markets and warns against exposure to moisture, heat, and improper servicing.
The document also lists the receiver’s technical specifications, accessories, installation steps, operation controls, and optional accessories such as the VC‑20 VHF converter and DCK‑2 DC operation kit. Antenna grounding recommendations and dimensions are included for proper setup.
| Frequency range | 100 kHz to 30 MHz |
|---|---|
| Power requirement (AC) | 120 VAC + 10%, 60 Hz |
| Power consumption | 40 watts (AC) or 2 A (DC) |
| Operating temperature | -10 to +50°C (+14 to +122°F) |
| Dimensions (W×H×D) | 270 x 96 x 270 mm |
| Weight | 5.6 kg (12.3 lbs) |
Units shipped to the U.S.A. and Canada are designed for 120 V AC only and do not have an AC voltage selector switch.
The receiver is rated for operation from –10 °C to +50 °C (‑14 °F to +122 °F).
The unit measures 270 × 96 × 270 mm and weighs about 5.6 kg (12.3 lb).
