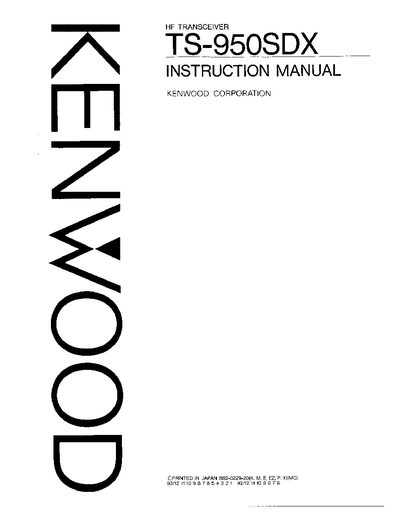

This instruction manual covers safe handling, required accessories, power connections, antenna setup, and detailed operating procedures for the Kenwood TS-950SDX HF transceiver. It includes sections on before‑operation safety, specifications and accessories, installation and connection, operation, maintenance, optional accessories, and reference material.
The manual emphasizes important safety precautions such as keeping the unit away from moisture and ensuring proper grounding, and it provides the technical specifications of the transceiver, including frequency range, output power, dimensions, weight, and power requirements.
| Frequency range | 100 kHz – 30 MHz |
|---|---|
| Output power (SSB, CW, FSK, FM) | 150 W max / 20 W min |
| Dimensions (W × H × D) | 409 mm × 154 mm × 446 mm |
| Weight | 23 kg (60.6 lb) |
Read the safety instructions and keep the unit away from rain or moisture, ensure proper grounding, maintain ventilation, and avoid exposing the appliance to fire or electric shock.
Connect an 8‑ohm permanent‑magnet speaker (minimum 4‑inch diameter) to the EXT SP jack on the rear of the radio using a 3.5 mm plug.
Use a 50‑ohm antenna and a 50‑ohm coaxial cable such as RG‑8 or SL‑2V; keep the SWR below 1.5 : 1 for optimal performance.
