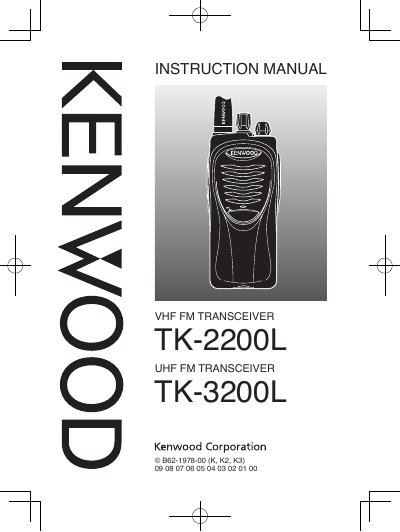

This is a manual for KENWOOD TK-2200L and TK-3200L radios
This manual introduces the Kenwood TK-2200L (and TK-3200L) VHF/UHF FM transceivers, describing their features such as multiple channel options, tone/code settings, and a built‑in voice scrambler. It includes safety notices, FCC licensing requirements, and guidance on battery handling and recycling.
Detailed sections cover preparation, battery‑pack precautions, antenna installation, key functions, channel setup, optional accessories, and a troubleshooting guide to resolve common issues such as power failures or communication problems.
| Number of channels | 2 (K), 8 (K2), 15 (K3) |
|---|---|
| VHF operating frequencies | 27 frequencies |
| UHF operating frequencies | 56 frequencies |
| Tone/code settings per channel | 122 settings |
| Channel spacing | 12.5 kHz |
| Maximum range (open locations) | Up to 6 miles |
| Maximum range (residential areas) | Up to 1.5 miles |
| Maximum range (steel/concrete buildings) | Up to 250,000 sq ft |
| Maximum range (high‑rise buildings) | Up to 20 floors |
| Battery type | Lithium‑ion (Li‑ion) battery pack |
The transceiver uses a 12.5 kHz channel spacing.
The K2 version provides 8 channels.
Check the battery pack; recharge or replace it, and ensure it is installed correctly.
