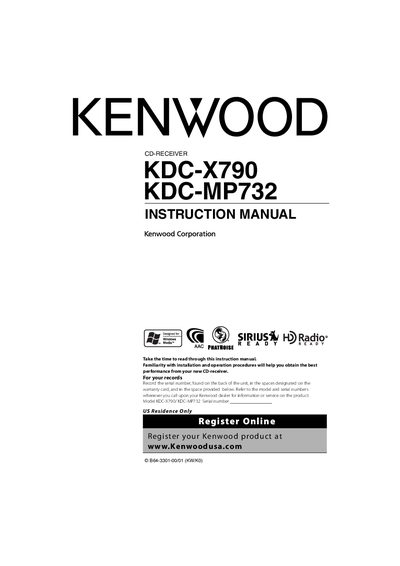

This manual is for KDC-X790 and KDC-MP732 user manual. It introduces the functions and features of the product and how to use it.
This manual explains how to install, configure, and operate the Kenwood KDC-X790 and KDC-MP732 CD‑receiver units for automotive applications. It covers safety precautions, basic controls, audio settings, and advanced features such as SIRIUS and HD Radio.
The document also includes wiring diagrams, troubleshooting steps, and a full specification table for both models, helping users and installers achieve optimal performance while complying with safety and regulatory requirements.
| FM frequency range | 187.9 MHz - 107.9 MHz |
|---|---|
| Audio section frequency response | 230 Hz - 15 kHz |
| CD player frequency response | 10 Hz - 20 kHz |
| Total harmonic distortion (KDC‑X790) | 0.008 % |
| Signal‑to‑noise ratio (KDC‑X790) | 110 dB |
| Pre‑out level (KDC‑X790) | 5000 mV / 10 kΩ |
| Operating voltage | 11 V – 16 V |
| Current consumption | 110 A |
| Installation size | 182 × 53 × 155 mm |
| Weight | 23.31 lb (1.50 kg) |
Press the reset button; this restores the factory settings and can also reset a disc auto‑changer that is not operating correctly.
