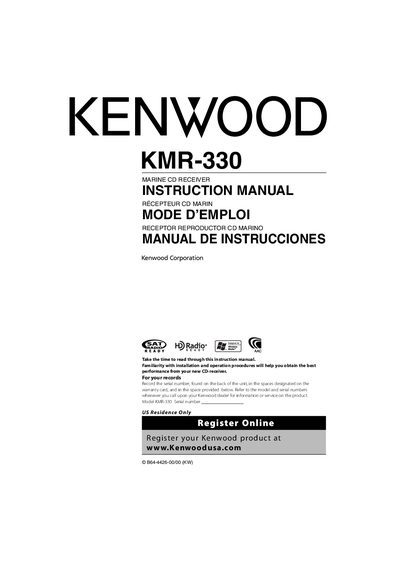

This is a manual of KMR-330 model car audio equipment from Kenwood, introducing the functions, features and usage methods of the equipment
This manual covers the installation, basic operation, and advanced functions of the Kenwood KMR-330 marine CD receiver. It includes safety warnings, cleaning instructions, and troubleshooting tips to help you get the best performance from the unit.
Detailed sections describe tuner settings, audio control, speaker configuration, display options, and CD/audio file playback, followed by a full specification sheet for the receiver.
| FM tuner frequency range | 87.9 MHz – 107.9 MHz |
|---|---|
| AM output power | 122 W ×4 |
| CD player frequency response | 20 Hz – 20 kHz |
| Operating voltage | 11 V – 16 V |
| Dimensions (W × H × D) | 218.2 mm × 53 mm × 155 mm |
| Weight | 23.1 lb (1.40 kg) |
Enter Speaker Setting mode, press the SRC button, then turn the control knob to select the desired speaker type.
Press the DISPLAY SEL button for at least one second, then turn the control knob left or right to choose the item.
