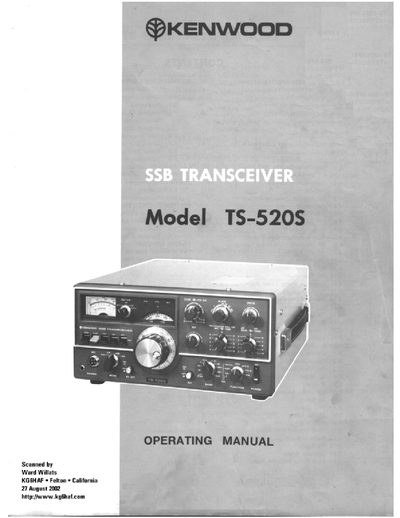

This manual covers the complete setup and use of the Kenwood TS-520S transceiver. It includes an introduction, detailed installation guidance, descriptions of front, side, and rear panel controls, and step‑by‑step operating procedures for SSB, CW, and other modes.
The document also lists the technical specifications, circuit board layout, maintenance and alignment procedures, and a troubleshooting guide, helping both amateur operators and service technicians keep the unit performing at its best.
| Maximum Transmit Power | 280 W (PEP) |
|---|---|
| Power Requirements | 120/220 V AC, 50/60 Hz or 13.8 V DC |
| Dimensions | 13.2" W × 5.9" H × 13.2" D |
| Weight | 16 kg (37.4 lb) |
The TS-520S employs only three vacuum tubes.
The TS-520S can deliver up to 200 W PEP for SSB operation.
