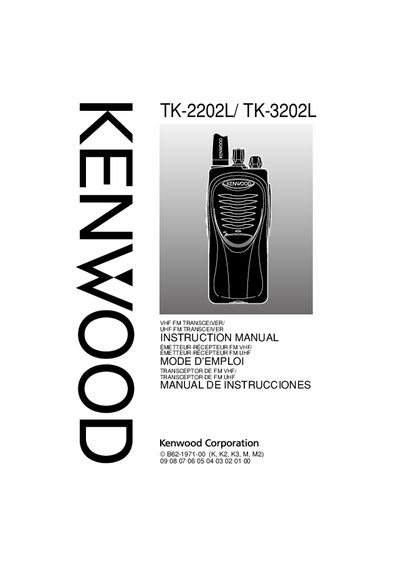

This manual provides detailed instructions on how to operate the TK-2202L/TK-3202L VHF/UHF FM transceivers.
This instruction manual covers everything needed to install, configure, and operate the Kenwood TK-2202L (VHF) and TK-3202L (UHF) 16‑channel FM transceivers. It includes safety precautions, unpacking checks, accessory lists, and detailed procedures for battery handling, antenna installation, and optional accessories.
The guide also explains programmable functions such as DTMF signaling, FleetSync, and Stun features, as well as basic and advanced operation modes like VOX, scanning, and auto‑dial. Safety warnings, FCC compliance information, and battery‑recycling instructions are provided throughout.
| Channels | 16 |
|---|---|
| Frequency Band (TK-2202L) | VHF FM |
| Frequency Band (TK-3202L) | UHF FM |
| Battery Pack | Li‑ion (KNB-45L) |
Do not charge the transceiver and battery pack when they are wet and keep the unit away from water.
When a stun code is received, the transceiver disables transmit mode or both transmit and receive modes, preventing unauthorized use.
FleetSync is a Kenwood protocol that opens the squelch only when the correct Fleet and ID codes are received, allowing secure communication.
