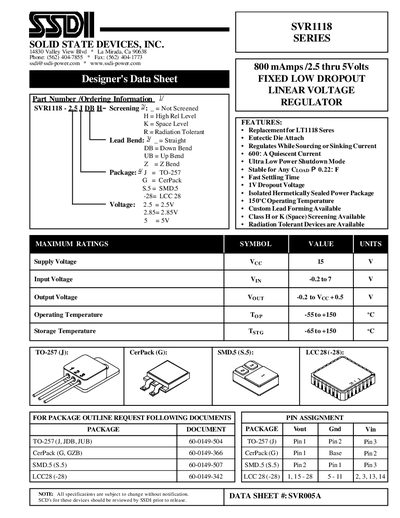

This data sheet provides detailed information about the SVR1118 series products, including product features, specifications, and package types.
The SSDI SVR1118 series provides fixed‑output low‑dropout linear regulators available in 2.5 V, 2.85 V and 5 V versions, delivering up to 800 mA with high‑precision regulation. Features include ultra‑low quiescent current, fast settling time, radiation‑tolerant options, and a variety of package styles such as TO‑257, CerPack, SMD.5 and LCC‑28.
The datasheet lists detailed electrical characteristics, maximum ratings, and ordering information. It also notes optional screening levels, custom lead forming, and temperature‑rated operation from –55 °C to +150 °C, making the SVR1118 suitable for a wide range of industrial and consumer applications.
| Output Voltage (2.5 V version, no‑load) | 2.47‑2.53 V |
|---|---|
| Output Voltage (2.85 V version, no‑load) | 2.82‑2.88 V |
| Output Voltage (5 V version, no‑load) | 4.95‑5.05 V |
| Maximum Output Current | 800 mA |
| Quiescent Current (Vin=5 V) | 0.6‑1.0 mA |
| Dropout Voltage (Iout=100 mA) | 0.85 V |
| Dropout Voltage (Iout=800 mA) | 1.0 V |
| Line Regulation (2.5 V version) | 6 mV |
| Load Regulation (2.5 V version, 0‑800 mA) | 10 mV |
| Operating Temperature Range | -55 °C to +150 °C |
| Package Types | TO‑257, CerPack, SMD.5, LCC‑28 |
The SVR1118 series can supply up to 800 mA of load current.
The quiescent current ranges from 0.6 mA to 1.0 mA at a 5 V input.
Available packages include TO‑257 (J), CerPack (G), SMD.5 (S.5) and LCC‑28 (-28).
