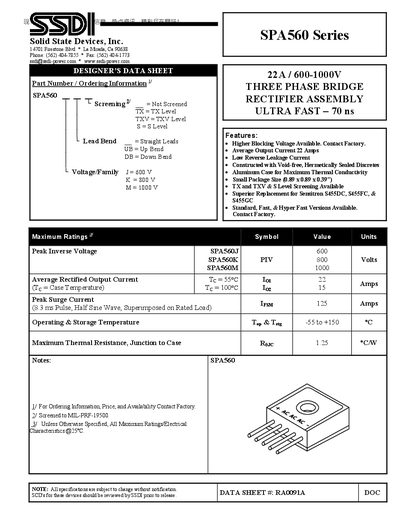

The SPA560 series is a three-phase bridge rectifier assembly with a rated current of 22 amps and a maximum reverse voltage of 600-1000 volts. The series offers a fast response time of 70 nanoseconds and a high packaging power density to meet a variety of application needs.
The SPA560 series from SSDI provides a three‑phase bridge rectifier assembly rated for 22 A continuous current and blocking voltages from 600 V to 1000 V. It features an ultra‑fast 70 ns reverse recovery time, low reverse leakage, and a compact aluminum case for high thermal conductivity.
Key electrical ratings include a peak inverse voltage of up to 1000 V, average rectified output current of 22 A, peak surge current of 125 A, and operation over a temperature range of –55 °C to +150 °C. Ordering information, lead bend options, and package dimensions are provided for design integration.
| Peak Inverse Voltage (SPA560J) | 600 V |
|---|---|
| Peak Inverse Voltage (SPA560K) | 800 V |
| Peak Inverse Voltage (SPA560M) | 1000 V |
| Maximum Thermal Resistance, Junction‑to‑Case | 1.25 °C/W |
| Isolation Resistance (1500 V) | 10 MΩ |
| Package Size | 0.89 × 0.89 × 0.39 in |
The SPA560M version has a peak inverse voltage of 1000 V.
