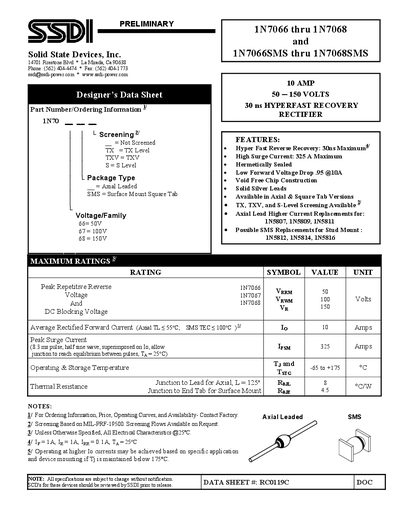

This document describes the features and characteristics of the 1N70 series Hyperfast Recovery Rectifiers produced by Solid State Devices, Inc., including ultra-fast reverse recovery time, high surge current, good sealing performance, and low forward voltage drop.
The 1N7066‑1N7068 series are hyper‑fast recovery rectifier diodes offered in both axial leaded and surface‑mount square‑tab (SMS) versions. They are designed for high‑current applications up to 10 A with low forward voltage drop and fast reverse recovery.
Key specifications include a peak repetitive reverse voltage of 50 V, a forward voltage drop of 0.95 V at 10 A, a reverse recovery time of 30 ns, and a peak surge current capability of 325 A. The devices operate over a temperature range of –65 °C to +175 °C and are supplied in standard axial and SMS packages with detailed dimensions provided.
| Peak Repetitive Reverse Voltage | 50 V |
|---|---|
| Forward Voltage Drop @10 A | 0.95 V |
| Junction Capacitance | 80 pF |
