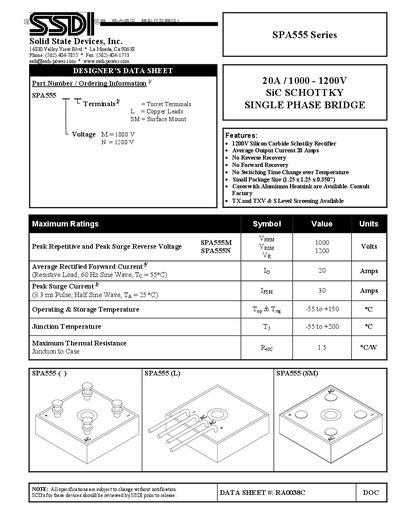

This document describes the features and characteristics of the SPA555 series 20A / 1000-1200V SiC Schottky single-phase bridge product introduced by Solid State Devices, Inc. The product features a 1200V silicon carbide Schottky rectifier, an average output current of 20 amps, no reverse recovery, no forward recovery, no switching time change over temperature, small package size (1.25 x 1.25 x 0.350 inches), and cases with aluminum heatsink are available. The product has peak repetitive and peak surge reverse voltage, can withstand an average rectified forward current of 20 amps, peak surge current of 30 amps, operating and storage temperature range of -55 to +150 degrees Celsius. The maximum thermal resistance is 1.5 degrees Celsius per watt.
The SPA555 Series is a silicon‑carbide Schottky rectifier designed for single‑phase bridge applications. It offers a 20 A average output current, 1000 V (typical) to 1200 V (maximum) reverse voltage rating, and features no reverse or forward recovery, providing fast switching performance.
The datasheet includes ordering information, electrical characteristics such as forward voltage drop, reverse leakage current, junction capacitance, and thermal specifications. Mechanical details like terminal spacing and package dimensions are also provided for proper mounting and integration.
| Average Output Current | 20 A |
|---|
The average rectified forward current is 20 A.
