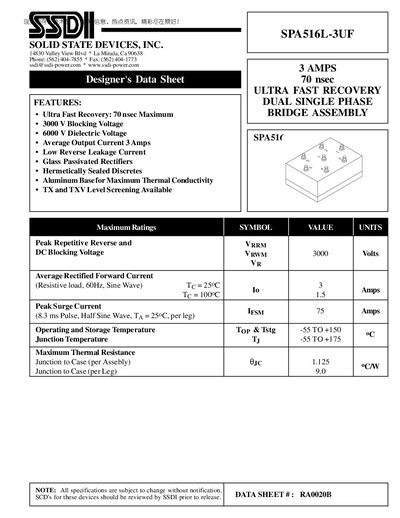

This document describes the features and characteristics of the SPA516 and SPA516L-3UF ultra-fast recovery dual single phase bridge assemblies produced by Solid State Devices, Inc. They feature ultra-fast recovery time, 3000V blocking voltage, 6000V dielectric voltage, 3A average output current, and low reverse leakage current.
The SPA516L-3UF bridge assembly from SSDI offers ultra‑fast recovery of 70 ns, a 3000 V blocking voltage and a 6000 V dielectric rating. It is designed for dual single‑phase operation and features glass‑passivated rectifiers, hermetically sealed discretes, and an aluminum base for high thermal conductivity.
Key electrical characteristics include an average output current of 3 A, a forward voltage drop of 5.70 V at 3 A, a reverse leakage current of 10 pA at 25 °C, and an isolation resistance of 1.0 GΩ. The device operates from –55 °C to +150 °C and has a maximum thermal resistance of 1.125 °C/W from junction to case.
| Blocking Voltage | 3000 V |
|---|---|
| Dielectric Voltage | 6000 V |
| Average Output Current | 3 A |
| Reverse Recovery Time | 70 nsec |
| Isolation Resistance | 1.0 GΩ |
| Forward Voltage Drop @ 3 A | 5.70 V |
| Reverse Leakage Current @ 25 °C | 10 pA |
The reverse recovery time is 70 nanoseconds.
The device is rated for a maximum blocking voltage of 3000 volts.
The bridge assembly can deliver an average output current of 3 amps.
