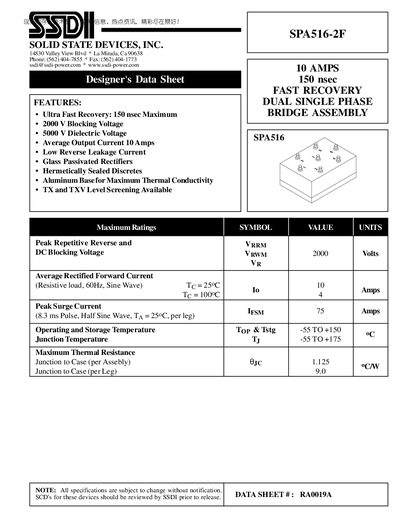

The SPA516-2F is a dual single‑phase bridge assembly from SSDI featuring ultra‑fast 150 ns recovery, 2000 V blocking voltage, and a 10 A average output current. It is glass‑passivated, hermetically sealed, and uses an aluminum base for high thermal conductivity.
The datasheet lists electrical characteristics such as a 150 ns reverse recovery time, 4.4 V forward voltage drop at 3 A, and a peak surge current of 1 A. Maximum ratings include a -55 °C to +150 °C operating temperature range and a junction‑to‑case thermal resistance of 1.125 °C/W.
| Blocking Voltage | 2000 V |
|---|---|
| Average Output Current | 10 A |
| Reverse Recovery Time | 150 nsec |
| Peak Surge Current | 1 A |
| Junction Temperature Range | -55 to +175 °C |
| Forward Voltage Drop (3 A, 300‑500 µs pulse) | 4.4 V |
The reverse recovery time is 150 nanoseconds.
The device can block up to 2000 volts.
The average output current is rated at 10 amps.
