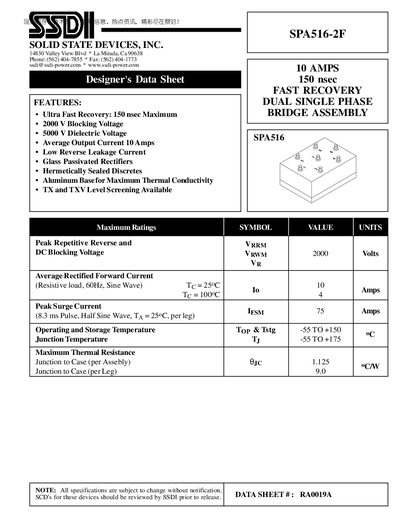

This document describes the features and characteristics of Solid State Devices, Inc.'s SPA516 series fast recovery dual single phase bridge assembly, including ultra fast recovery speed, 2000V blocking voltage, 5000V dielectric voltage, and average output current of 10 amps.
The SPA516-2F bridge assembly from SSDI is a dual single‑phase device rated for 10 A continuous current. It features ultra‑fast 150 ns reverse recovery, 2000 V blocking voltage, 5000 V dielectric voltage, low reverse leakage, and an aluminum base for high thermal conductivity.
Electrical characteristics include a 44 V instantaneous forward voltage drop at 3 A, reverse leakage currents of 10 µA (room temperature) and 0.5 mA at 100 °C, and a reverse recovery time of 150 ns. The device operates from –55 °C to +150 °C, with a junction temperature range up to +175 °C and a maximum thermal resistance of 1.125 °C/W.
| Blocking Voltage | 2000 V |
|---|---|
| Dielectric Voltage | 5000 V |
| Average Output Current | 10 A |
| Reverse Recovery Time | 150 nsec |
| Junction Temperature Range | -55 to +175 °C |
| Maximum Thermal Resistance (Junction‑to‑Case) | 1.125 °C/W |
| Instantaneous Forward Voltage Drop | 44 V |
| Reverse Leakage Current (100 °C) | 0.5 mA |
The reverse recovery time is 150 nanoseconds.
The device can block up to 2000 volts.
It is rated for an average output current of 10 amps.
