Motorola's MC68HC912D60A/D is a member of the M68HC12 microcontroller family. It features a 32-bit data bus and an 8-bit address bus. It integrates 32 general-purpose registers, 8-bit timers, 16-bit timers, 256 bytes of RAM, and 128 bytes of EPROM. The microcontroller can be used in a variety of applications, including industrial, medical, consumer electronics, and automotive.

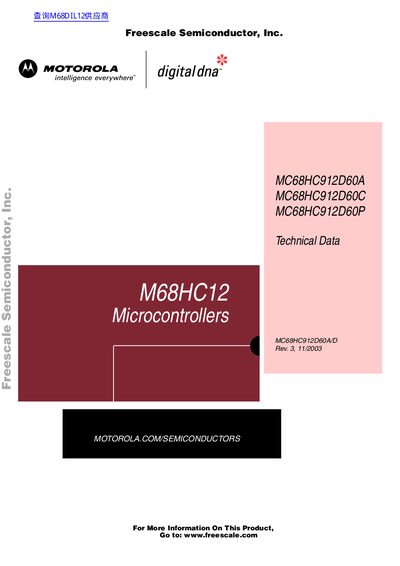

This document provides detailed technical information for the Freescale MC68HC912D60A, MC68HC912D60C, and MC68HC912D60P microcontrollers. It includes descriptions of the CPU core, pin assignments, memory options, and peripheral features.
The sheet also lists operating modes, bus control, I/O port functions, clock and oscillator details, as well as specifications for flash, EEPROM, ADC, and MSCAN controller. Revision 3.0 of the data sheet is presented, with references to further information at www.freescale.com.
