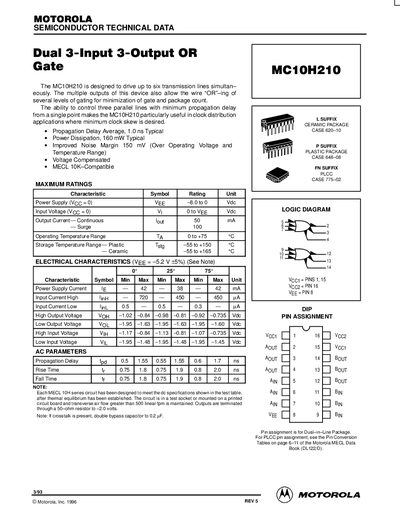

The MC10H210 data sheet, this device can drive up to six transmission lines simultaneously, and the multiple outputs can be connected by wire OR logic to reduce the number of gates and packages, and the ability to control three parallel lines with minimum propagation delay from a single point makes the MC10H210 particularly useful in clock distribution applications where minimum clock skew is desired
The MC10H210 is a dual 3‑input 3‑output OR gate designed for clock distribution and transmission‑line driving, allowing up to six lines to be controlled with minimal propagation delay. Its ability to wire‑OR several gating levels helps reduce gate count and package size.
Key specifications include a typical propagation delay of 1.0 ns, 160 mW typical power dissipation, 150 mV noise margin, and continuous output current of 50 mA. The device is offered in ceramic DIP, plastic PLCC, and plastic DIP packages with detailed mechanical dimensions and operating temperature ranges from –10 °C to +75 °C.
| Propagation Delay (typical) | 1.0 ns |
|---|---|
| Power Dissipation (typical) | 160 mW |
| Improved Noise Margin | 150 mV |
| Surge Output Current | 100 mA |
| Operating Temperature Range | -10 °C to +75 °C |
| High Input Voltage (VIH) | -1.17 V to -0.84 V |
| Low Input Voltage (VIL) | -1.95 V to -1.48 V |
| High Output Voltage (VOH) | -1.02 V to -0.84 V |
| Low Output Voltage (VOL) | -1.95 V to -1.63 V |
| Power Supply Voltage (VEE) | -8.0 V to 0 V |
The typical propagation delay is 1.0 ns.
The device operates from –10 °C to +75 °C.
