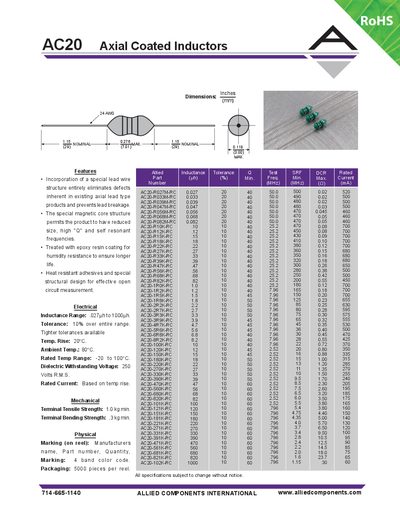

This document describes the features and characteristics of the AC20 series axial coated inductors, including special lead wire structure, magnetic core structure, humidity resistance coating, etc. The inductance range is from 0.027µh to 1000µh with a tolerance of 10% over the entire range. The product has heat resistance and mechanical strength requirements. Packaging is in the form of 5000 pieces per reel.
The AC20 series are axial lead inductors with a special magnetic core structure and epoxy resin coating that improves humidity resistance and prevents lead breakage. They are supplied on reels and marked with a 4‑band color code.
Key specifications include a wide inductance range, tight tolerance, temperature ratings, and mechanical strength. Packaging is 5000 pieces per reel, and all specifications are subject to change without notice.
| Inductance Range | 0.027 µH to 1000 µH |
|---|---|
| Tolerance | 10 % over entire range |
| Temperature Rise | 20 °C |
| Ambient Temperature | 80 °C |
| Rated Temperature Range | -20 °C to 100 °C |
| Terminal Tensile Strength | 1.0 kg min |
| Terminal Bending Strength | 0.3 kg min |
| Packaging | 5000 pieces per reel |
The inductance ranges from 0.027 µH up to 1000 µH.
They have a 10 % tolerance over the entire inductance range.
Each reel contains 5,000 pieces.
