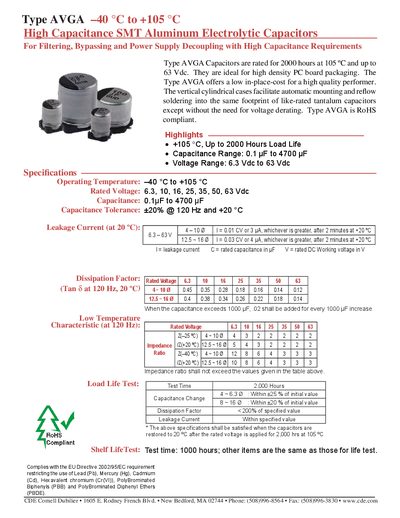

This document presents the specifications and characteristics of AVGA series high temperature and high capacitance SMT aluminum electrolytic capacitors from CDE Cornell Dubilier. These capacitors are suitable for applications requiring high capacitance such as filtering, bypassing, and power supply decoupling. Features include high temperature operation, long life, wide capacitance range, and various voltage options.
The AVGA series from Cornell Dubilier offers high‑capacitance SMT aluminum electrolytic capacitors designed for filtering, bypassing, and power‑supply decoupling. They operate from –40 °C to +105 °C, are RoHS compliant, and can replace tantalum parts without voltage derating.
The document lists detailed electrical specifications, case codes, land‑pattern dimensions, and recommended soldering methods, including reflow profiles and hand‑solder limits for various case sizes.
| Operating Temperature | –40 °C to +105 °C |
|---|---|
| Rated Voltage Range | 6.3 Vdc to 63 Vdc |
| Capacitance Range | 0.1 µF to 4700 µF |
| Load Life | 2000 hours at 105 °C |
| Dissipation Factor | < 200 % of specified value |
| Leakage Current | Within specified value |
| RoHS Compliance | Yes |
AVGA capacitors are rated for operation from –40 °C to +105 °C.
The series supports voltages from 6.3 Vdc up to 63 Vdc.
They are rated for a load life of 2000 hours at 105 °C.
