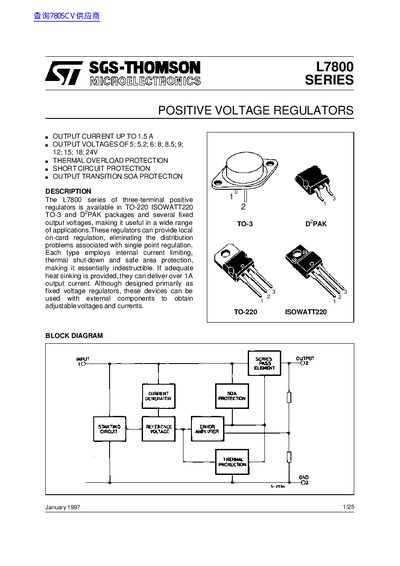

L7800 series positive voltage regulators are available in TO-220 ISOWATT220 TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.Theseregulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustablevoltages and currents.
The L7800 series of three‑terminal positive voltage regulators is offered in TO‑220, ISOWATT220, TO‑3 and DPAK packages with a variety of fixed output voltages. Each device includes internal current limiting, thermal shutdown, and safe‑area protection, making it robust for on‑card regulation in many applications.
Typical electrical characteristics are listed for each fixed‑voltage version, including output voltage tolerance, line and load regulation, dropout voltage, quiescent current, and thermal resistance data. Mechanical dimensions for the DPAK package are also provided.
| Maximum Output Current | 1.5 A |
|---|---|
| Available Fixed Output Voltages | 5 V, 5.2 V, 6 V, 8 V, 8.5 V, 9 V, 12 V, 15 V, 18 V, 24 V |
| Thermal Overload Protection | Enabled |
| Short Circuit Protection | Enabled |
| Output Transition SOA Protection | Enabled |
| Supply Voltage Rejection (120 Hz) | 68 dB (for L7805) |
| Quiescent Current (25 °C) | 6 mA typical |
The regulators can deliver up to 1.5 A of output current.
They include thermal overload protection, short‑circuit protection, and output transition safe‑area (SOA) protection.
Fixed versions are offered at 5 V, 5.2 V, 6 V, 8 V, 8.5 V, 9 V, 12 V, 15 V, 18 V and 24 V.
