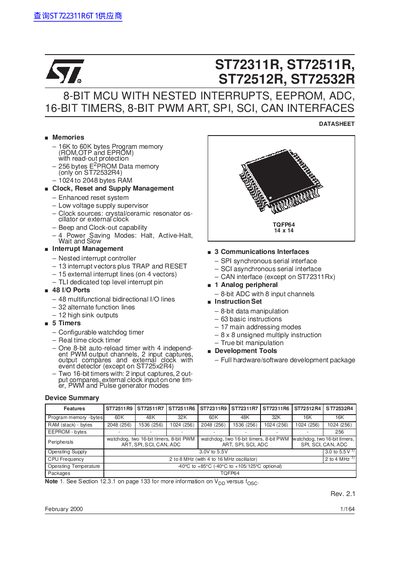

ST72311R, ST72511R, ST72512R, ST72532R 8-bit MCU WITH NESTED INTERRUPTS, EEPROM, ADC, 16-BIT TIMERS, 8-BIT PWM ART, SPI, SCI, CAN INTERFACES
The ST7 family devices ST72311R, ST72511R, ST72512R and ST72532R are 8‑bit microcontrollers with nested interrupt controllers, multiple communication interfaces (SPI, SCI, CAN) and a range of power‑saving modes. They target mid‑range applications, offering program memory from 16 KB to 60 KB, RAM up to 2 KB, and optional EEPROM.
Key sections cover general description, pin‑out, memory maps, clock and reset management, power‑saving modes, I/O port configuration, on‑chip peripherals (watchdog, timers, ADC, PWM‑ART), electrical characteristics, package data and ordering information. The document also includes a summary of changes and legal notices.
| Program memory | 16 KB to 60 KB |
|---|---|
| RAM | 1 KB to 2 KB |
| Operating supply voltage | 3.0 V to 5.5 V |
| CPU frequency | 2 MHz to 8 MHz (4 MHz to 16 MHz oscillator) |
| Operating temperature | -40 °C to +85 °C |
| Timers | 5 timers (1×8‑bit PWM‑ART, 2×16‑bit, watchdog, RTC) |
| Interrupt vectors | 13 vectors plus TRAP and RESET |
| Communication interfaces | SPI, SCI, CAN (CAN not on ST72311R) |
The devices operate from 3.0 V to 5.5 V supply voltage.
The MCUs support SPI, SCI and, for most models, CAN interfaces.
