FSAV332 is a quad high speed video switch from Fairchild Semiconductor. It has low on-resistance, wide bandwidth, low power consumption and so on, which makes it suitable for LCD, Plasma, Projector displays.
The FSAV332 is a quad high‑speed video switch from Fairchild Semiconductor. It offers low on‑resistance, wide bandwidth, and individual output‑enable pins, making it suitable for Y/C or CVBS video switching in LCD, plasma, and projector displays.

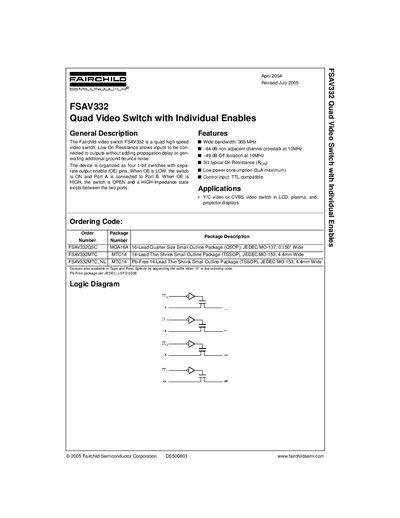

The handbook includes a general description, feature list, ordering information, logic and connection diagrams, pin assignments for QSOP and TSSOP packages, absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance data, physical dimensions, and a life‑support policy notice.
| Bandwidth | 368 MHz |
|---|---|
| On Resistance (Ron) | 30 Ω typical |
| Power Consumption | 8 µA max |
| Off Isolation | -49 dB at 10 MHz |
| Control Input | TTL compatible |
| Supply Voltage Range | 0.5 V to 7.0 V |
| Recommended Supply Voltage | 4.75 V to 5.25 V |
| Turn‑ON Time | 4.75 ns to 6.25 ns |
| Turn‑OFF Time | 4.75 ns to 6.26 ns |
| Control Pin Input Capacitance | 3.0 pF |
| Package | 16‑Lead QSOP, 0.150 in wide |
The recommended supply voltage is 4.75 V to 5.25 V.
The typical on‑resistance is 30 Ω.
It consumes up to 8 µA of current.
