EASY512-AB-RC is a direct current input type programmable controller in the Easy512 series, with 8 digital inputs (2 inputs available as analog inputs), 4 relay outputs, LCD display, operation buttons, screw terminals, timer and other features.

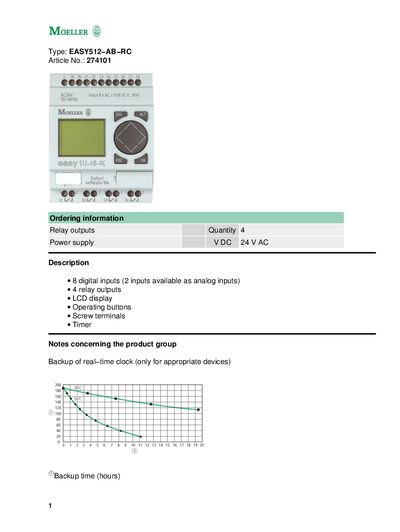

This document details the technical data for the Moeller EASY512-AB-RC controller. It includes information on inputs, outputs, power supply, environmental limits, and mechanical dimensions.
Key sections cover general specifications, mounting options, electrical characteristics, EMC compliance, and mechanical shock resistance, allowing engineers to assess suitability for automation applications.
| Type | EASY512-AB-RC |
|---|---|
| Article No. | 274101 |
| Digital inputs | 8 (2 usable as analog) |
| Relay outputs | 4 |
| Power supply | 24 V AC |
| Dimensions (W x H x D) | 71.5 x 90 x 58 mm |
| Frequency | 50/60 Hz |
| LCD display | Yes |
It has 8 digital inputs, with 2 of them usable as analog inputs.
The device provides 4 relay outputs.
The controller operates from a 24 V AC supply (50/60 Hz).
The unit measures 71.5 mm × 90 mm × 58 mm.
