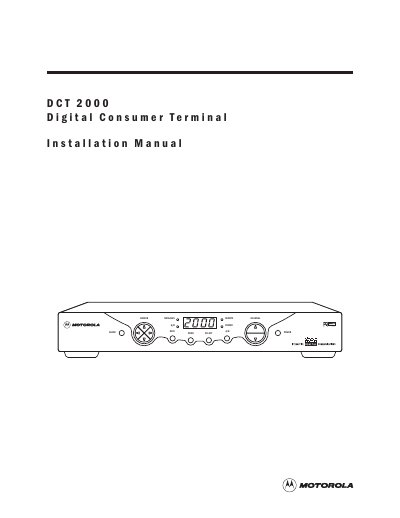

This document is the installation manual for the DCT2000 Digital Consumer Terminal, providing information on its installation and service procedures.
This manual introduces the Motorola DCT 2000 digital consumer terminal, describing its front and rear panels, optional modules and remote‑control functions. It includes safety symbols, FCC/Canadian compliance notes, and contact information for technical support and repairs.
The guide walks installers through cabling, grounding, IR‑blaster installation, operational checks, troubleshooting procedures and detailed specifications such as frequency ranges, power dissipation and environmental limits. Appendices cover diagnostics, on‑screen displays and a glossary of abbreviations.
| Input frequency | 54 through 860 MHz (excluding data carrier frequency) |
|---|---|
| Output frequency accuracy | –150 kHz |
| Power dissipation | 35 W at 115 Vac |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Size | 17.13 × 13.25 × 2.75 inches |
| Weight | 8.6 pounds |
| Input analog video level | 0 dBmV through +15 dBmV |
| Input analog sound level | –17 dBmV through +2 dBmV |
The manual warns not to expose the appliance to rain or moisture and not to use the plug with an extension cord unless the blades are fully inserted.
Call the Motorola Repair Facility at 1‑800‑227‑0450 for a Return for Service Authorization (RSA) number before sending the unit.
The device operates from 0 °C to 40 °C (32 °F to 104 °F).
