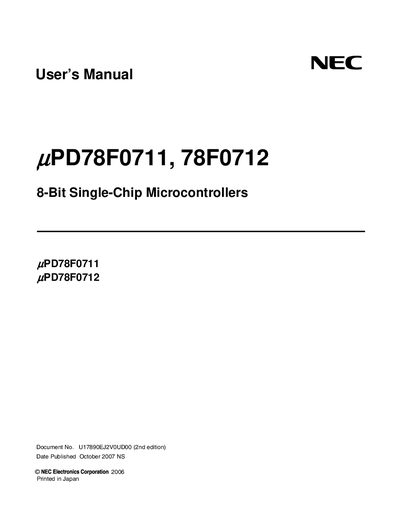

This document is the user's manual for μPD78F0711 and μPD78F0712, two 8-bit single-chip microcontrollers. The document covers topics such as voltage application waveform at input pins, handling of unused input pins, and precautions against electrostatic discharge.
This manual provides detailed information for engineers designing with the NEC uPD78F0711 and uPD78F0712 8‑bit single‑chip microcontrollers. It includes sections on pin configuration, CPU architecture, peripheral functions, and electrical specifications, as well as handling precautions such as ESD protection and power‑on/off sequencing.
The document also lists related development tools, revision history, and contact information for NEC Electronics worldwide, helping users locate additional resources and support for their designs.
| Device family | uPD78F0711 / uPD78F0712 |
|---|---|
| Architecture | 8‑bit single‑chip microcontroller |
| Technology | SuperFlash® |
| Document number | U17890EJ2VOUD |
| Publication date | October 2007 |
