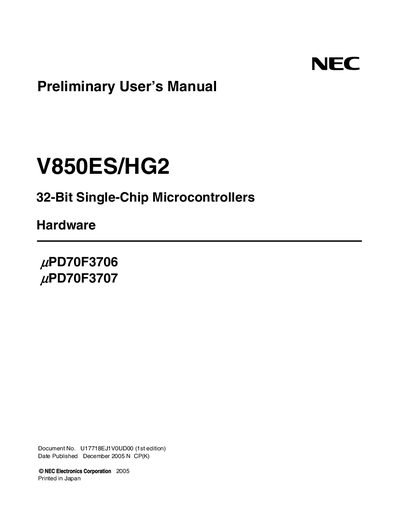

This document is a preliminary user manual for V850ES/HG2 32-bit single-chip microcontrollers. The document describes the features and characteristics of the µPD70F3706 and µPD70F3707 products.
This manual is intended for users who need to understand the hardware functions of the NEC V850ES/HG2 32‑bit single‑chip microcontroller and design application systems using it. It covers pin functions, CPU architecture, port configuration, electrical specifications, and safety precautions, and references related documents such as the V850ES Architecture User’s Manual.
The document also includes handling guidelines for CMOS inputs, ESD protection, power‑on/off sequencing, and contact information for NEC Electronics worldwide. It is a preliminary publication, so specifications may change before final production.
| Microcontroller family | V850ES/HG2 |
|---|---|
| Architecture | 32‑Bit Single‑Chip Microcontroller |
| Device part numbers | LPD70F3706, UPD70F3707 |
